Description

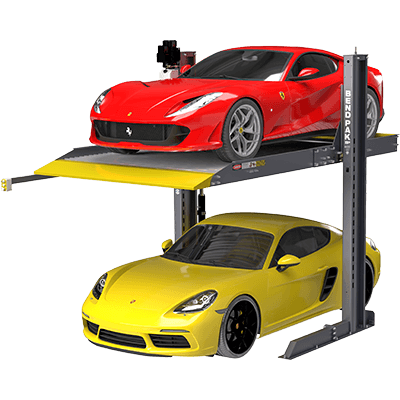

PL-6000DC 6,000 Lb. Capacity / Two-Post Parking Lift / Shared Columns / SPECIAL ORDER

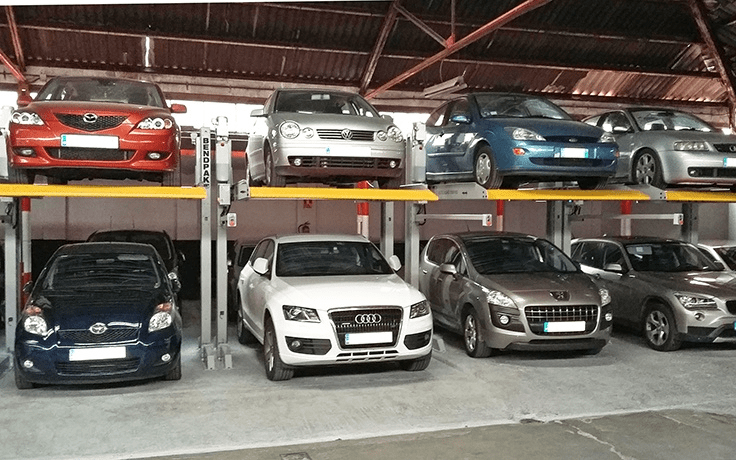

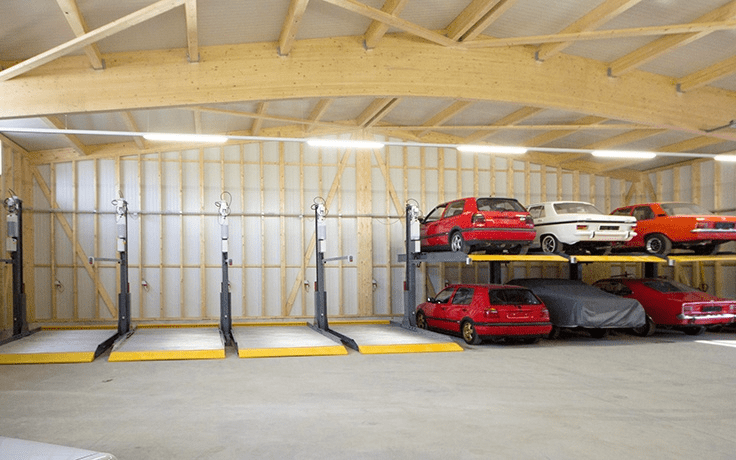

The PL-6000DC dual-column parking lift is designed to accommodate a wide array of vehicles including SUVs, sedans, and sports cars. It offers the perfect combination for both long-term and short-term parking. Typically long-term parking is the upper level and short-term parking below. The PL-6000DC was specifically designed to accommodate the needs of real estate developers, architects, engineers, automotive dealers, and commercial parking operators. The PL-6000DC can be installed inside a typical 8-foot parking space and accommodate most cars and light trucks. They operate in both indoor and outdoor locations.
Features & Specs
- Style: Two-Post Parking Lift
- Lifting Capacity :6 000 lbs. (2 722 kg)
- Overall Height :126.5” (3,221 mm)
- Overall Length :148.25” (3,766 mm)
- Overall Width :100.25” (2,547 mm)
- Lifting Height :82.5” (2,100 mm)
- Usable Platform Width :82.5” (2,100 mm)
- Electrical Required :220-420V, 1 or 3 Phase , 50/60Hz
- Control Power :24V
- Lock Release :Electric auto release
- Power Pack :2.2kw hydraulic power pump
- Lifting / Lowering Time :50 / 45 sec.
Features

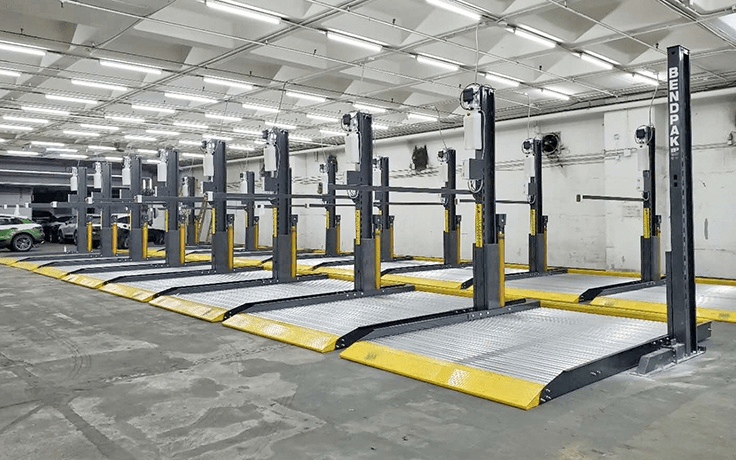

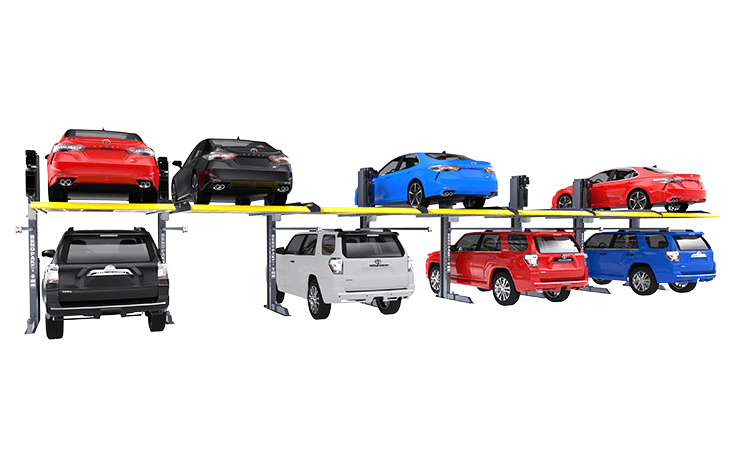

- Ganged column design allows multiple installations in minimum space
- Commercial grade design and construction
- Galvanized and corrugated anti-slip platform
- Freestanding design when ganged two or wide
- Overhead power unit provides smooth quiet hydraulic operation
- Designed for installation on typical parking surfaces
- Platform can be stopped at different heights to fit various vehicles and ceiling heights
- Full width channel-locked center panels protect lower vehicle
- Wide deck platform accommodates pickups, vans and cars.
- Dual direct-drive hydraulic cylinders
- Automatic safety lock combined with anti-fall device hold platform securely
- Maintenance free composite carriage bearings
- Electric key switch for security and safety
- Automatic shut-off when operator releases key switch
- Manual lock release available in case electricity failure (OPTIONAL)
- Hydraulic overloading protection
- Photocell sensor prohibits lift to be lowered if vehicle is parked below
